MIL-PRF-15733/26C
Inch
mm
Inch
mm
.005
.13
.145
3.68
.010
.25
.187
4.75
.015
.38
.200
5.08
.025
.64
.312
7.92
.045
1.14
.416
10.57
.050
1.27
.738
18.75
.070
1.78
.743
18.87
.093
2.36
.793
20.14
.109
2.77
1.179
29.95
1.345
34.16
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Circuit diagram is for information only.
4. All filters shall be supplied with mounting hardware.
5. Use of style FL14 with or without shoulder is optional.
6. Terminal identification (non-symmetrical filters): The case shall be marked at the threaded end of the filter with
the letter "C" or "L" as follows:
Letter
Circuit
C - - - - - - - - - - - - - -L1
L - - - - - - - - - - - - - L2
7. Optional terminal hole, .070 ±.010 inches may be supplied.
8. Recommended mounting torque: 7 in-lb.

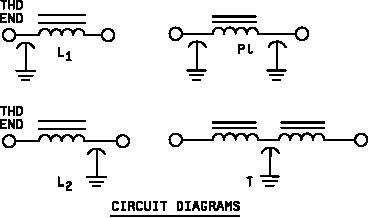

FIGURE 1. Case dimensions and circuit diagrams - Continued.
