A-A-55169 Filter, Radio Frequency InterferenceThis CID covers the general requirements for radio frequency interference \(RFI\) suppression power line filters. These filters consist of capacitors and inductors used in combination with each other and are provided with resistors as a safety feature. Filters covered by this CID are intended for commercial/industrial applications and should not be used in military systems needing stringent environmental and electrical requirements.

Pages 1 - 2 - 3 - 4 - 5


A-A-55169B
A
B
C
D
E
(max)
(max)
(max)
(max)
PIN
.015/ .38
AA55169-
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Inch
mm
01
2.07
52.6
1.81
46.0
1.16
29.5
2.375
60.33
2.78
70.6
02
2.07
52.6
1.81
46.0
1 16
29.5
2.375
60.33
2.78
70.6
03
2.56
65.0
2.07
52.6
1.16
29.5
2.938
74.63
3.35
85.1
04
2.56
65.0
2.07
52.6
1.16
29.5
2.938
74.63
3.35
85.1
05
2.56
65.0
2.07
52.6
1.53
38.9
2.938
74.63
3.35
85.1
NOTES:
1.
Dimensions are in inches.
2.
Metric equivalents are given for general information only.
3.
Wire leads: (Four) Length 4.0 inches (101.6 mm) minimum; 18 AWG for -01 through -04, 16 AWG for -05.
4.
Mounting holes: (Two) .188 inch (4.78 mm) diameter.
5.
Metric equivalents are in parentheses.

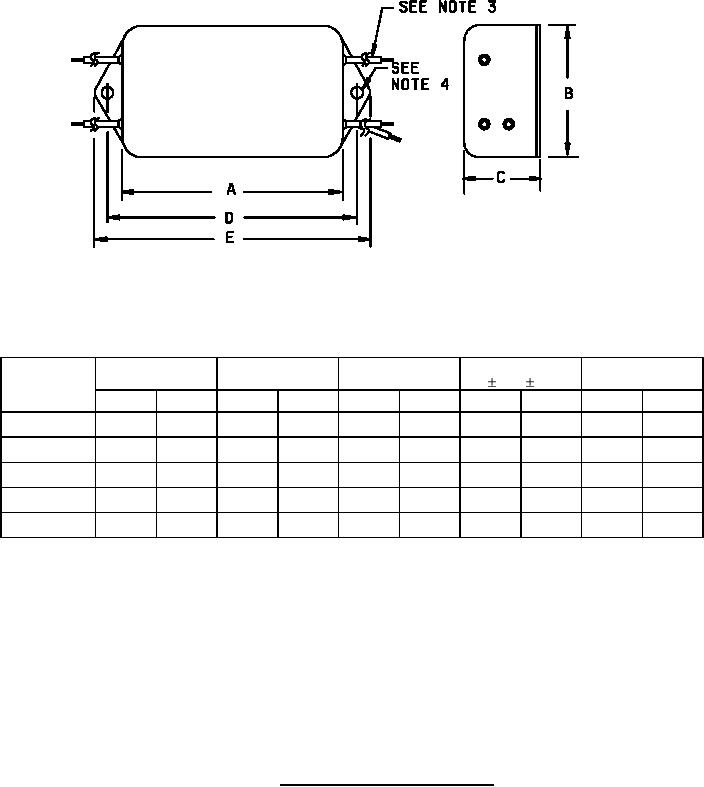

FIGURE 2. Case configuration and dimensions.
