A-A-55169 Filter, Radio Frequency InterferenceThis CID covers the general requirements for radio frequency interference \(RFI\) suppression power line filters. These filters consist of capacitors and inductors used in combination with each other and are provided with resistors as a safety feature. Filters covered by this CID are intended for commercial/industrial applications and should not be used in military systems needing stringent environmental and electrical requirements.

Pages 1 - 2 - 3 - 4 - 5


A-A-55169B
TABLE I. Current rating and insertion loss.
Minimum insertion loss (dB)
Line-to-ground in 50 -ohm circuit
PIN
Current rating
AA55169-
Frequency (MHz)
.15
.5
1
5
10
30
01
1A
30
65
65
65
65
65
02
2A
5
44
60
65
65
60
03
3A
30
65
65
65
65
65
04
5A
5
44
60
65
65
60
05
10 A
5
44
60
65
65
60

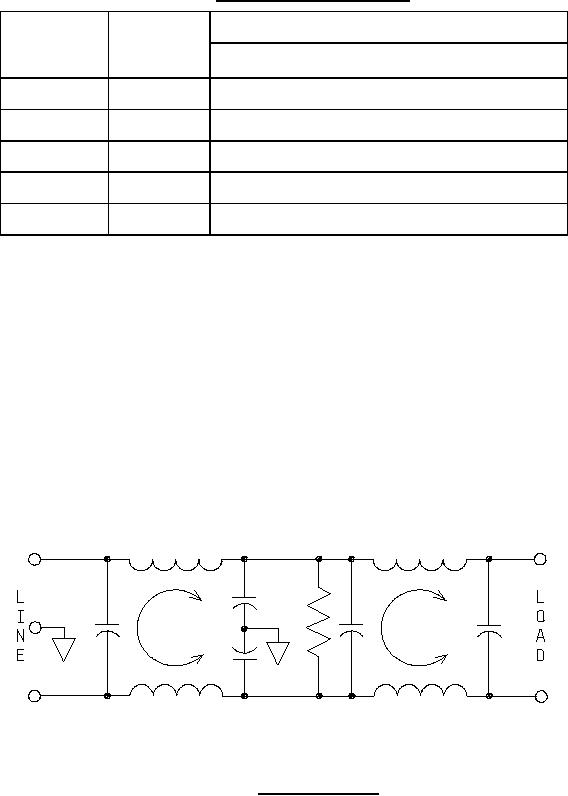

FIGURE 1. Electrical schematic.
