MIL-PRF-15733/39K
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are in parentheses.
3. Metric equivalents are given for general information only.

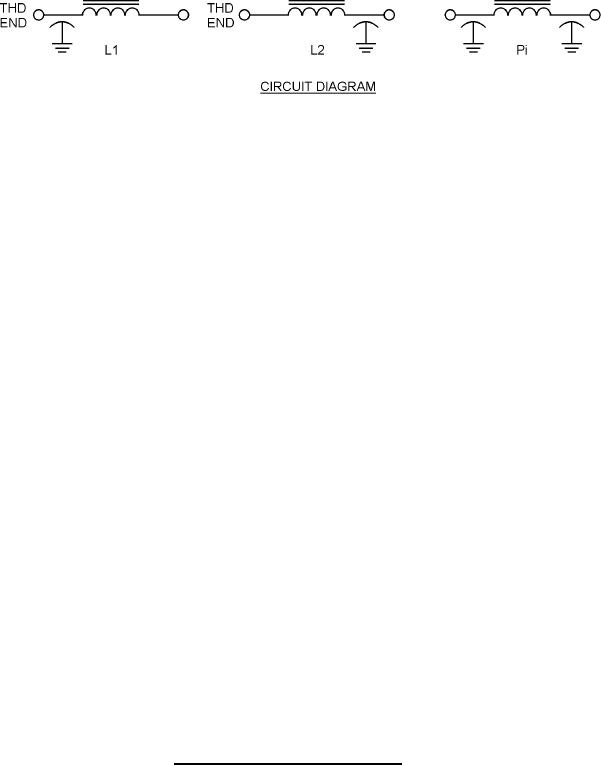

4. Circuit diagram is for information only.
5. Filters shall be supplied with mounting hardware.
6. Terminal identification (nonsymmetrical filters): The case shall be marked at the threaded end of the filter,
with the symbol "C" or the symbol "L", as follows:
Circuit
Symbol
L1
C
L2
L
7. Recommended mounting torque: 48 in-oz.
FIGURE 1. Case dimensions and circuit diagrams Continued.
