A-A-55161B
PIN
A
B
C
D
E
AA55161-
(max)
(max)
(max)
(max)
.015/ .38
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Inch
mm
01
2.25
57.2
1.82
46.2
0.66
16.8
2.125
53.98
2.53
64.3
02
3.10
78.7
2.07
52.6
0.91
23.1
2.375
60.33
2.81
71.4
03
2.25
57.2
1.82
46.2
0.66
16.8
2.125
53.98
2.53
64.3
04
3.10
78.7
2.07
52.6
0.91
23.1
2.375
60.33
2.81
71.4
05
2.61
66.3
1.82
46.2
0.78
19.8
2.125
53.98
2.53
64.3
06
3.10
78.7
2.07
52.6
1.16
29.5
2.375
60.33
2.81
71.4
07
2.61
66.3
1.82
46.2
0.78
19.8
2.125
53.98
2.53
64.3
08
3.10
78.7
2.07
52.6
1.16
29.5
2.375
60.33
2.81
71.4
09
2.61
66.3
1.82
46.2
1.16
29.5
2.125
53.98
2.53
64.3
10
3.35
85.1
2.07
52.6
1.16
29.5
2.375
60.33
2.81
71.4
11
3.36
85.3
2.07
52.6
1.16
29.5
2.375
60.33
2.81
71.4
12
3.35
85.1
2.56
65.0
1.53
38.9
2.938
74.63
3.35
85.1
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Fastons: (Four) .250 inch (6.35 mm).
Holes: .07 inch (1.8 mm) diameter.
4. Mounting holes: (Two) .188 inch (4.78 mm) diameter.
5. Ground faston: .07 inch (1.8 mm) x .155 inch (3.94 mm) slot.

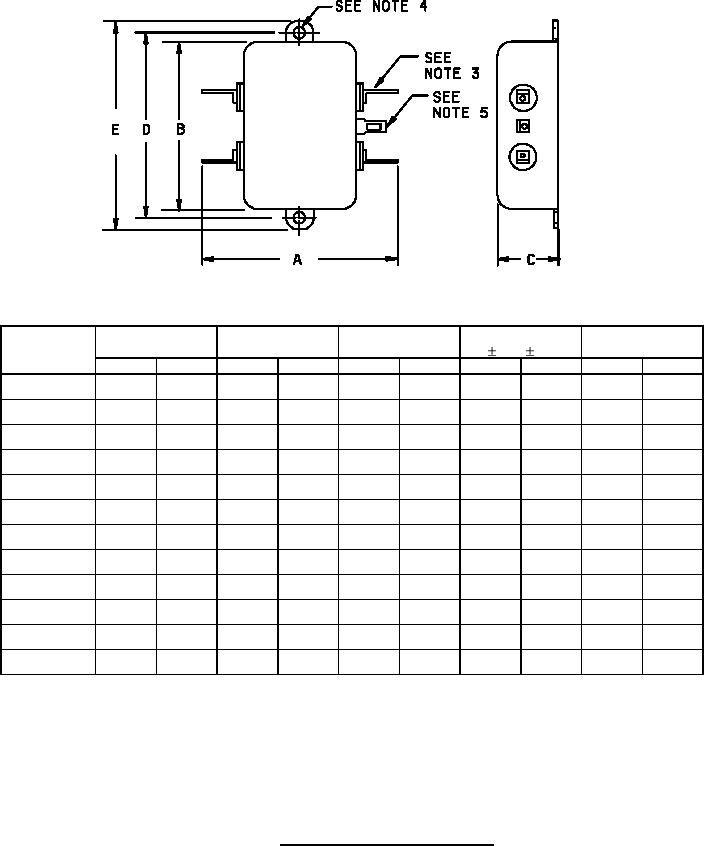

FIGURE 2. Case configuration and dimensions.
